GPI Contrast and sensitivity

Achieved sensitivity is a function of many parameters, including contrast, inner working distance, brightness of the central star (if any), observing mode (dithered, sky-offset, sky-rotation), and, weather conditions.

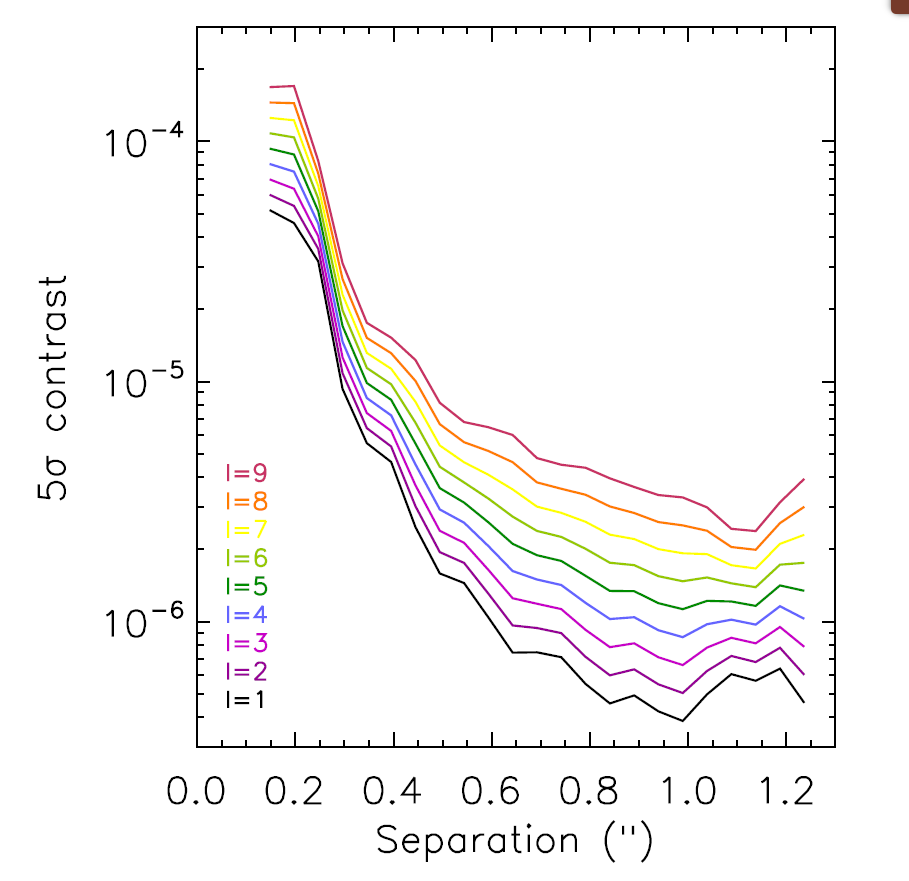

Contrast as function of I-magnitude of the star

  • The figure above shows typical GPIES contrasts for a 1-hour sequence (42 x 1 minute exposures) on targets as a function of magnitude
  • The contrasts are most strongly correlated with target star magnitude and with atmospheric correlation timescale tau0.
  • Contrast at 0.4 arcseconds is determined primarily by residual atmospheric speckles and correlates most strongly with seeing
  • Contrast at 0.25 arcseconds is determined primarily by FPM centering and quasi-static errors
  • Contrast at 0.8 arcsecods approaches photon-noise limits and hence is a strong function of star magnitude
  • There is a significant benefit to having >20 degrees of field rotation to enhance ADI PyKLIP processing

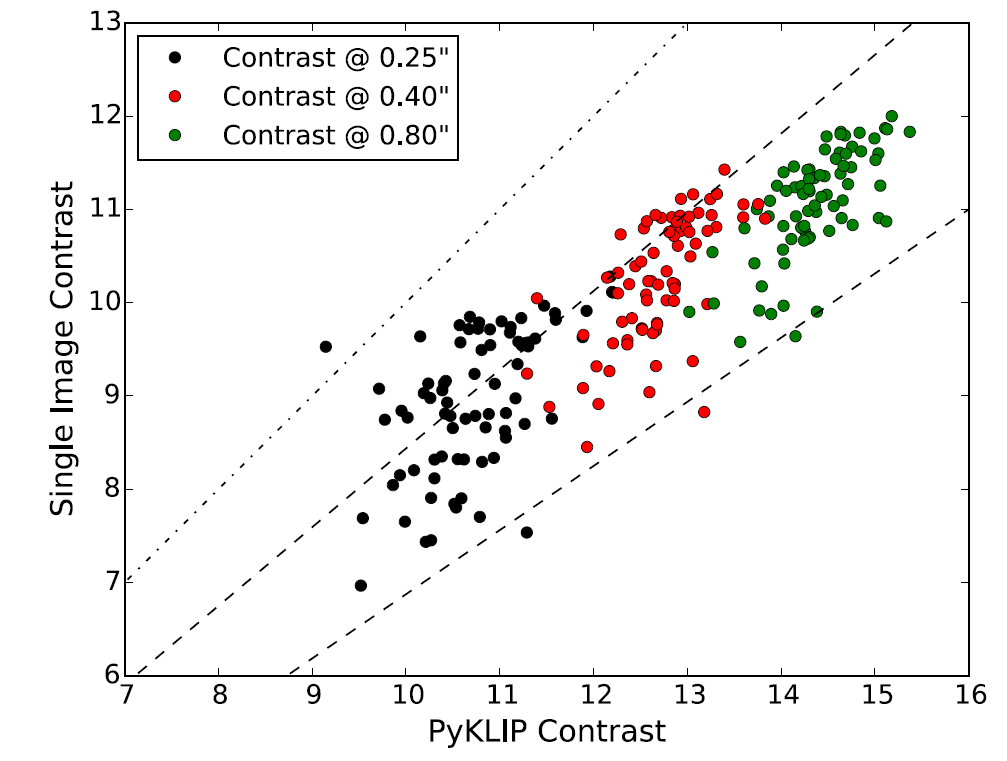

Contrast relation betweeb 1 minute raw image contrast and 1h processed sequence

Image above shows the Correlation between raw 60-second contrasts and final 40-image combined contrasts after PyKLIP processing (contrast expressed in astronomical magnitudes).

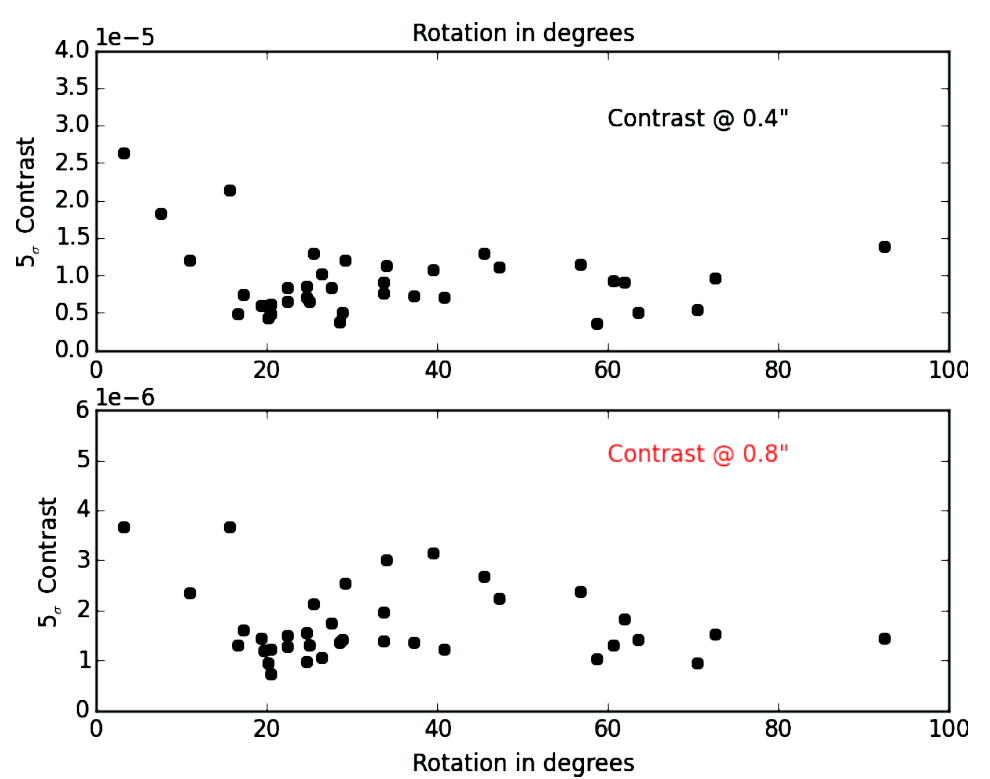

Contrast as a function of accumulated field rotation

The image above shows the final pyKlip contrast vs field rotation.
